Overview

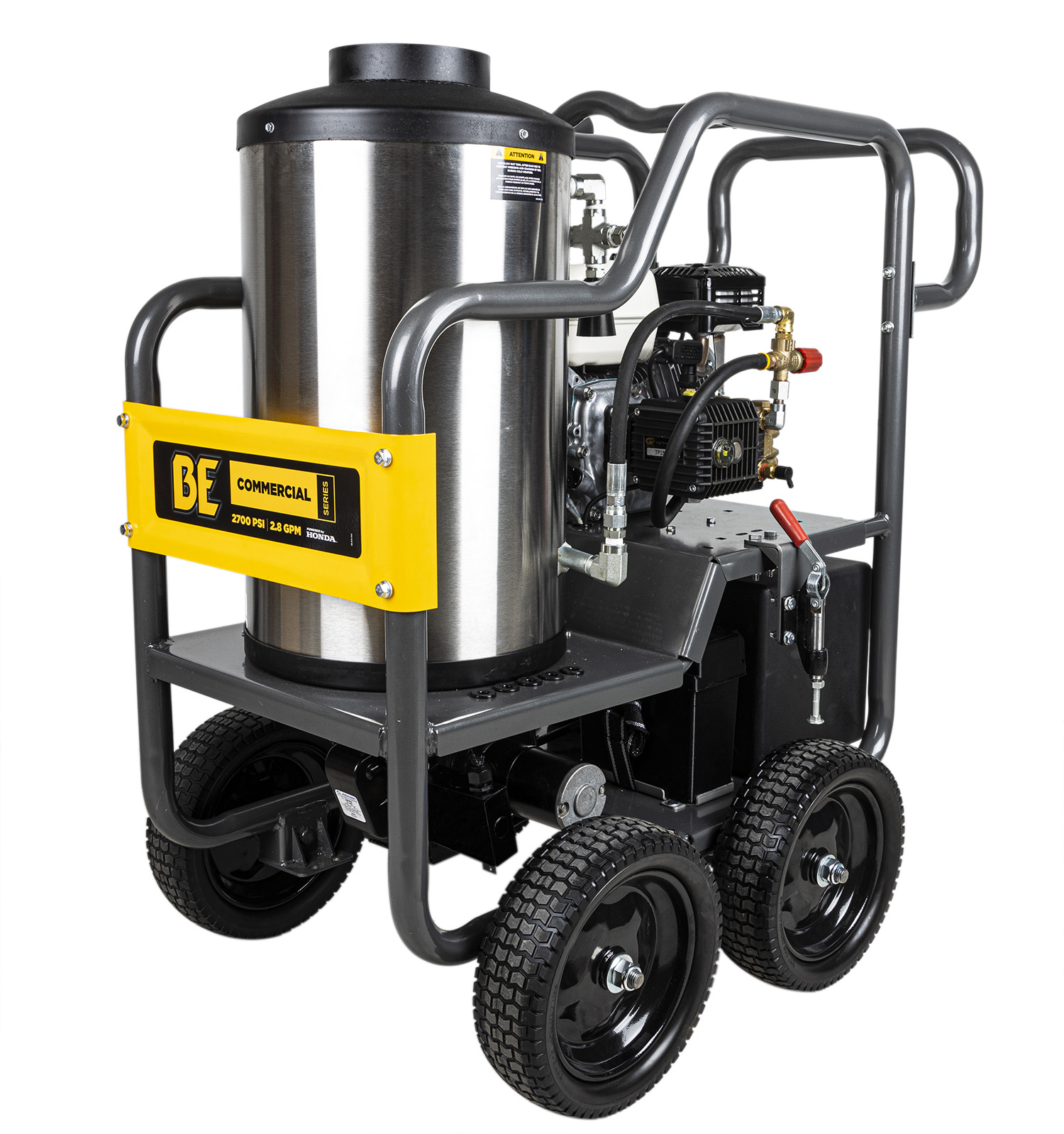

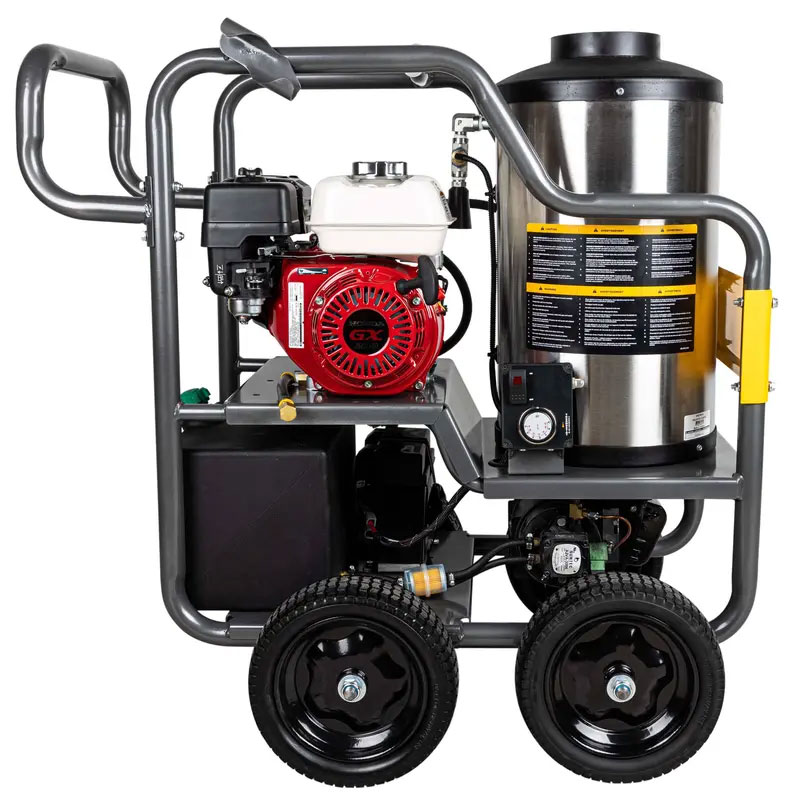

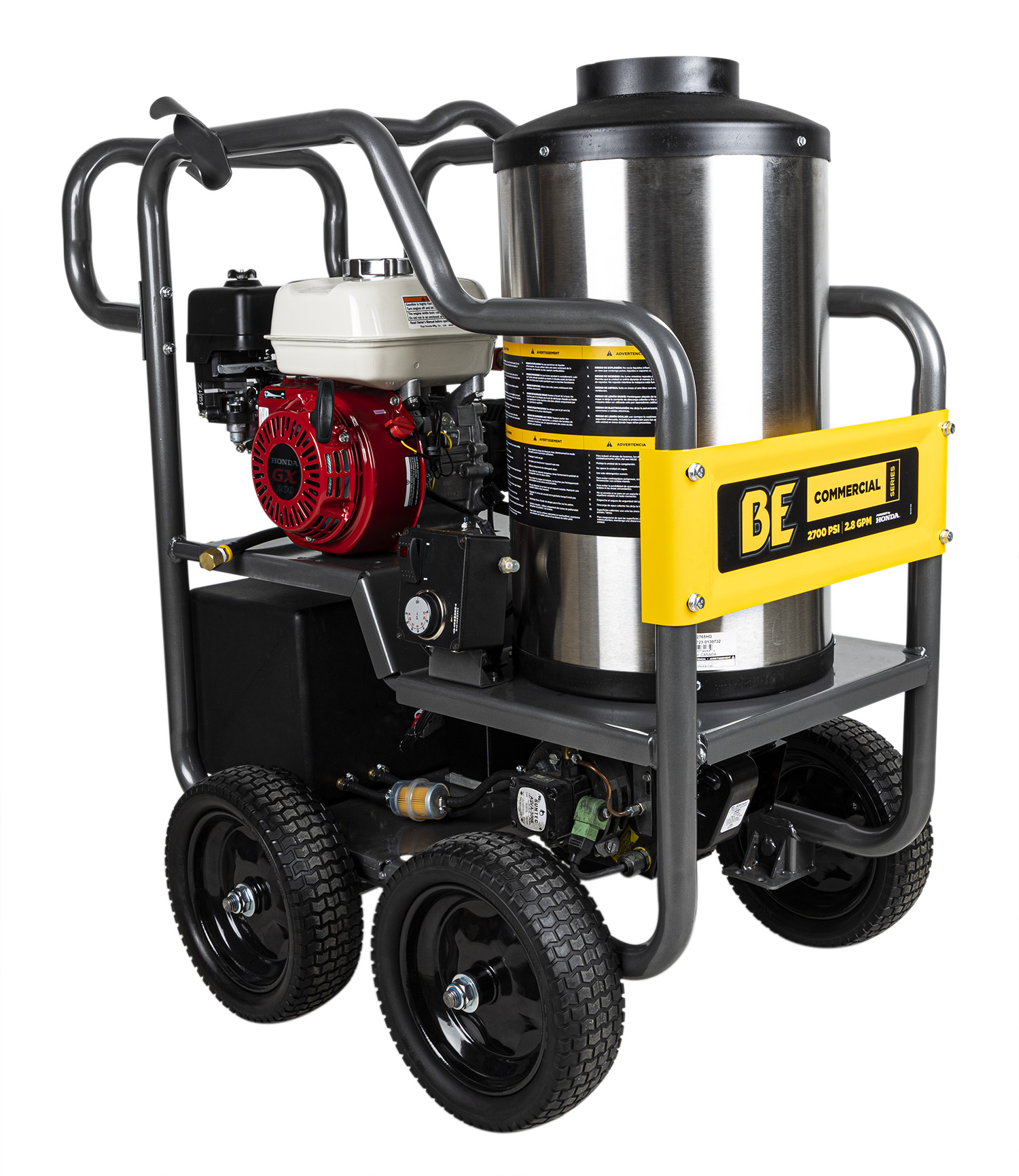

The General TP2530J34 is a hot water pressure washer powered by a commercial Honda engine with an excellent weight to power ratio, designed to be used all day, every day. It delivers 2700 PSI at 10.6 litres per minute, with a commercial grade General triplex pump and a 12 volt Wayne burner that runs on diesel. An AGM deep cycle battery is included.

The direct drive system connects the engine to the pump for compact and efficient power transfer, and the external unloader provides cooling to extend pump life. The powder coated steel frame carries four 12 inch flat free tires for stability on rough terrain, and a lift point is built into the frame so the machine can be craned onto a truck or trailer.

Key Features

• Commercial Honda GX200 engine, designed for daily use
• Commercial grade General triplex pump, external unloader
• 2700 PSI at 10.6 litres per minute
• 12 volt Wayne diesel burner, adjustable thermostat to 89C
• AGM deep cycle battery included
• Powder coated steel frame, four 12 inch flat free tires
• Built in lift point for truck or trailer loading
• 50 foot high pressure hose, spray gun wand, five nozzles

Specifications

• Pressure: 2700 PSI, flow 10.6 L/min (2.8 GPM)
• Engine: Honda GX200, 200cc
• Pump: General triplex, external unloader
• Max temperature: 89C / 193F
• Series: commercial
• Weight: 480 lb
• Frame: powder coated steel, 4 x 12 inch flat free tires
• Included: 50 ft high pressure hose, spray gun wand assembly, five spray nozzles

Applications

• Truck, trailer and plant cleaning with hot water
• Industrial equipment and machinery degreasing
• Fleet and hire company maintenance
• Building and concrete washdown
• Daily commercial cleaning on site

What You Need to Complete the Job

Run the delivery line through a 92 metre hose reel and carry single wire high pressure hose for replacement lengths. Service the engine with Penrite SAE 30 small engine oil, and see the Pressure Washers Accessories range for the rest of the kit.

Frequently Asked Questions

What is the hot water temperature?

The listing states the thermostat can be set up to 89C. The 12 volt Wayne burner fires on diesel and the burner can be turned off and controlled with the adjustable thermostat, so the water temperature is set to the job.

Is the battery included?

Yes. An AGM deep cycle battery is included for the electric start and the burner. That removes the need to buy a battery separately, which is one of the small costs that adds up on a new machine.

Can it be lifted onto a truck?

Yes. A lift point is built into the frame so the machine can be lifted with a crane onto a truck or trailer. The frame also includes mounting brackets for quick installation onto trucks or trailers by removing the wheels.
