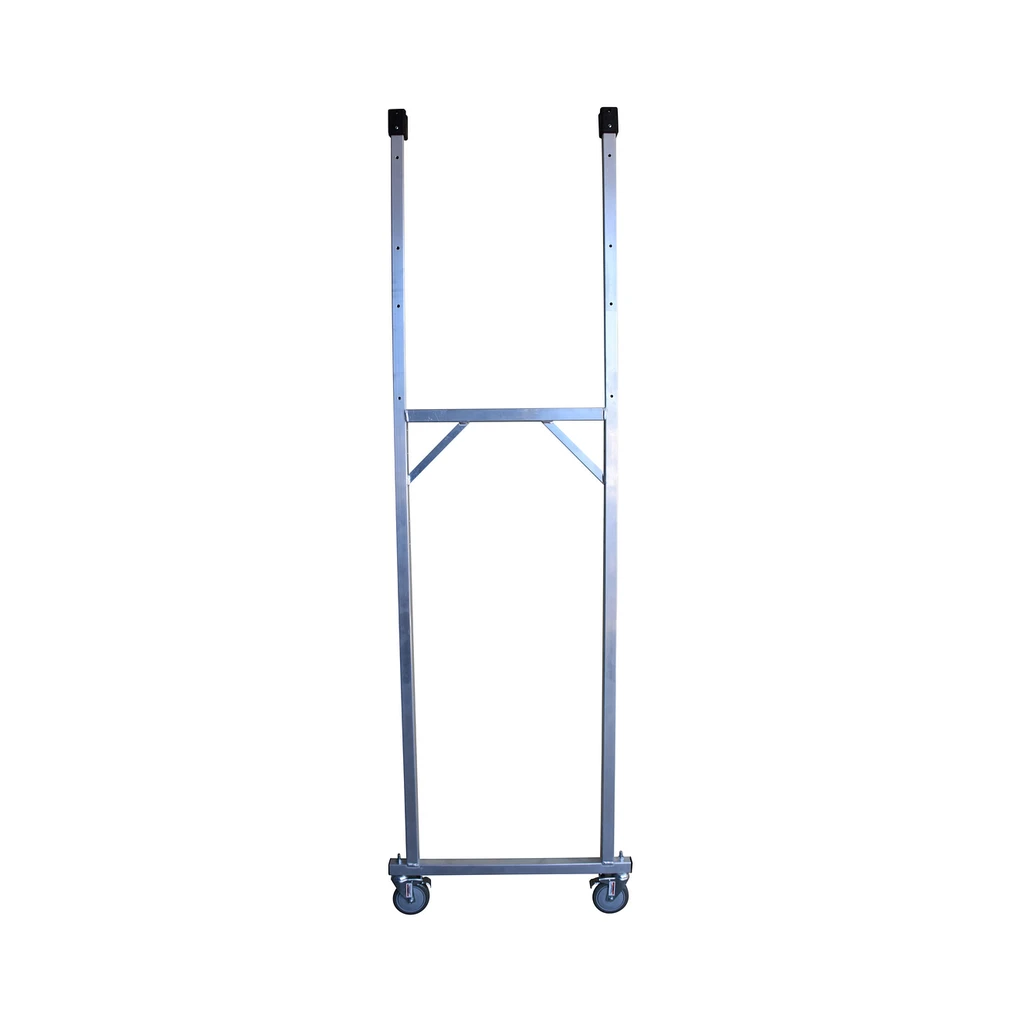

Bailey Modular Access 6 Step Upright 200kg

The Bailey FS13794 Modular Access System 6 Step Upright is the tallest upright in the modular range, built for higher access points where you need a stable frame to support the platform bay. It lets the end user customise the platform length at variable heights and shapes to suit the application, and it increases safety and efficiency in the workplace. Because it is an off the shelf solution, there is no huge capital cost or long lead time. It is designed for the transportation, aviation, manufacturing, warehousing, defence and mining industries, plus heavy equipment maintenance and stock picking.

Key Features

• Industrial rated for use on commercial and industrial sites
• Strong fully welded design fabricated from heavy duty aluminium
• Foot operated castor brakes for stability when in position
• Removable handrails for safe access to the work zone
• 200kg load rate per platform bay
• Can be configured into any length work platform
• Platforms can be stepped up or down
• Highly manoeuvrable and lightweight
• Supplied as a flat pack for optimal transportation
• Standard sized fasteners and included tools improve assembly time
• Easy to follow picture based instructions with an actual size bolt template
• Made to AS/NZS 1892 – Portable Ladders

Specifications

• Style: 6 step modular access system
• Material: heavy duty aluminium
• Load rate: 200kg per platform bay
• Dimensions: 2560 x 800 x 60mm
• Weight: 10kg

Applications

• Warehouse and stock picking access
• Transportation, aviation and aircraft maintenance
• Manufacturing, process and heavy equipment maintenance
• Defence and mining industries

What You Need To Complete Your Access Platform Setup

Pair this upright with the right components to build a full work platform. Add a 1.0m modular platform or a 2.0m modular platform as the deck, and a joiner platform to extend between uprights. Browse the full Access Platform Ladder range for fixed platforms.

Frequently Asked Questions

What is the load rating of this upright?

The modular access system is rated at 200kg per platform bay, which covers the weight of a person plus tools and materials on each bay. The system is industrial rated for commercial and industrial sites and is made to AS/NZS 1892 for portable ladders. Always follow the manufacturer instructions for assembly and safe setup.

How tall is this upright?

The 6 step upright is the tallest in the modular range, with a height that suits higher access points such as upper racking and mezzanine levels. It supports a platform bay at the top, and multiple uprights can be combined to build a longer walkway.

Is the system supplied assembled?

No. The modular access system is supplied as a flat pack for optimal transportation, with standard sized fasteners and the tools required for assembly included. Picture based instructions with an actual size bolt template make the build straightforward.

Can I build a platform at any height?

The modular system combines 3, 4, 5 and 6 step uprights with platform bays, so you can build a work platform at the height and length that suits the job. The platforms can be stepped up or down to follow the level of the work area.

Can I order for delivery or pickup?

Yes. You can order online and choose Australia-wide delivery or pickup from our Truganina trade counter in Melbourne’s west. Some products are sourced to order, so there can be a 2 to 4 week lead time, and we send you a confirmation once your order is ready. For any questions call (03) 93941400 or email orders@singhroofingsupplies.com.au.
