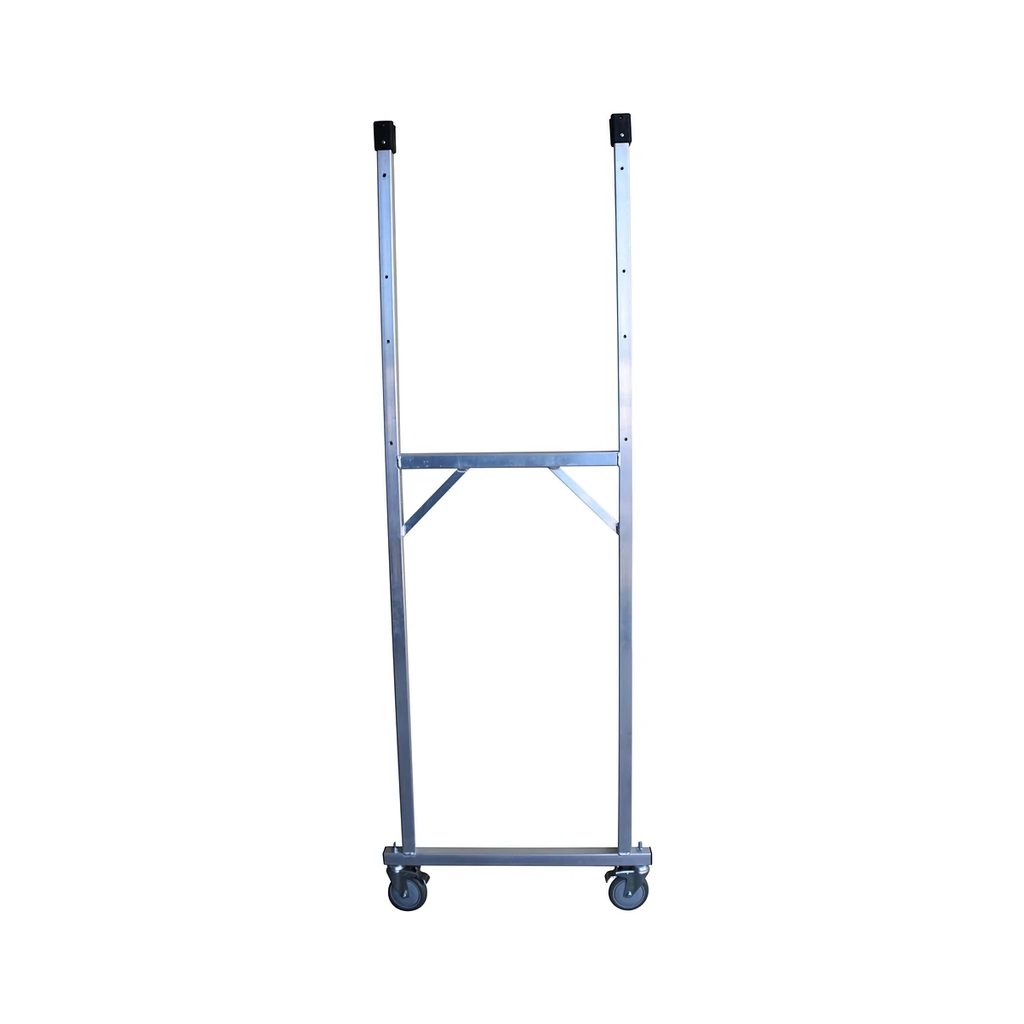

Bailey Modular Access 5 Step Upright 200kg

The Bailey FS13793 Modular Access System 5 Step Upright lets you build a custom length work platform at the height and shape that suits your job. It sits between the 4 step and 6 step uprights in the modular range, and it stacks with other uprights and platform bays to form a walkway at whatever length you need. Because it is an off the shelf solution, there is no huge capital cost or long lead time. It is designed for the transportation, aviation, manufacturing, warehousing, defence and mining industries, plus heavy equipment maintenance and stock picking.

Key Features

• Industrial rated for use on commercial and industrial sites
• Strong fully welded design fabricated from heavy duty aluminium
• Foot operated castor brakes for stability when in position
• Removable handrails for safe access to the work zone
• 200kg load rate per platform bay
• Can be configured into any length work platform
• Platforms can be stepped up or down
• Highly manoeuvrable and lightweight
• Supplied as a flat pack for optimal transportation
• Standard sized fasteners and included tools improve assembly time
• Easy to follow picture based instructions with an actual size bolt template
• Made to AS/NZS 1892 – Portable Ladders

Specifications

• Style: 5 step modular access system
• Material: heavy duty aluminium
• Load rate: 200kg per platform bay
• Dimensions: 2290 x 800 x 60mm
• Weight: 9.2kg

Applications

• Warehouse and stock picking access
• Transportation, aviation and aircraft maintenance
• Manufacturing, process and heavy equipment maintenance
• Defence and mining industries

What You Need To Complete Your Access Platform Setup

Pair this upright with the right components to build a full work platform. Add a 1.0m modular platform or a 2.0m modular platform as the deck, and a joiner platform to extend between uprights. Browse the full Access Platform Ladder range for fixed platforms.

Frequently Asked Questions

What is the load rating of this upright?

The modular access system is rated at 200kg per platform bay, which covers the weight of a person plus tools and materials on each bay. The system is industrial rated for commercial and industrial sites and is made to AS/NZS 1892 for portable ladders. Always follow the manufacturer instructions for assembly and safe setup.

What does this upright do?

The upright is the frame that supports the platform bays. You stand it where you need access, attach the platform bay across the top, and add removable handrails for a safe work zone. Multiple uprights and bays can be stacked in series to create a platform at the length and height you need.

Is the system supplied assembled?

No. The modular access system is supplied as a flat pack for optimal transportation, with standard sized fasteners and the tools required for assembly included. Picture based instructions with an actual size bolt template make the build straightforward.

How does the system move around?

The upright is highly manoeuvrable and lightweight, with foot operated castor brakes that lock the frame in place once it is positioned. That makes it easy to reposition the platform along a racking run or work area.

Can I order for delivery or pickup?

Yes. You can order online and choose Australia-wide delivery or pickup from our Truganina trade counter in Melbourne’s west. Some products are sourced to order, so there can be a 2 to 4 week lead time, and we send you a confirmation once your order is ready. For any questions call (03) 93941400 or email orders@singhroofingsupplies.com.au.
