Overview

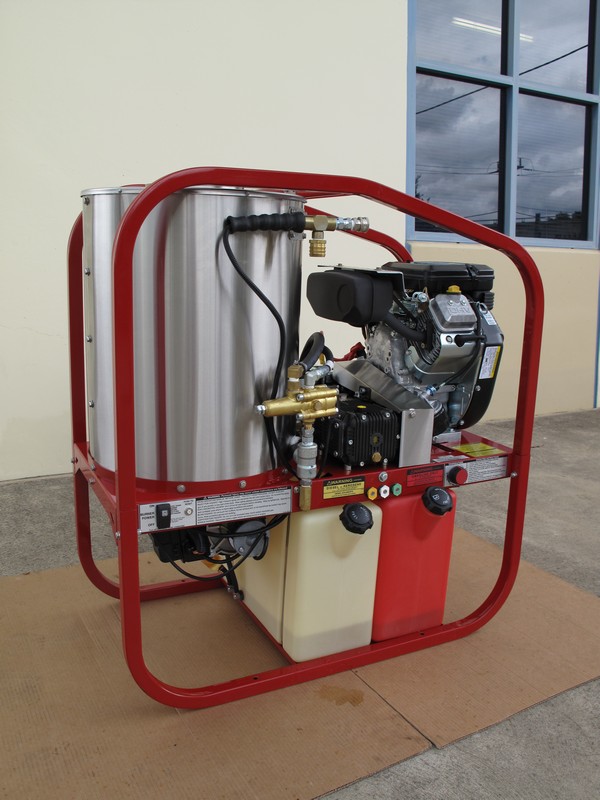

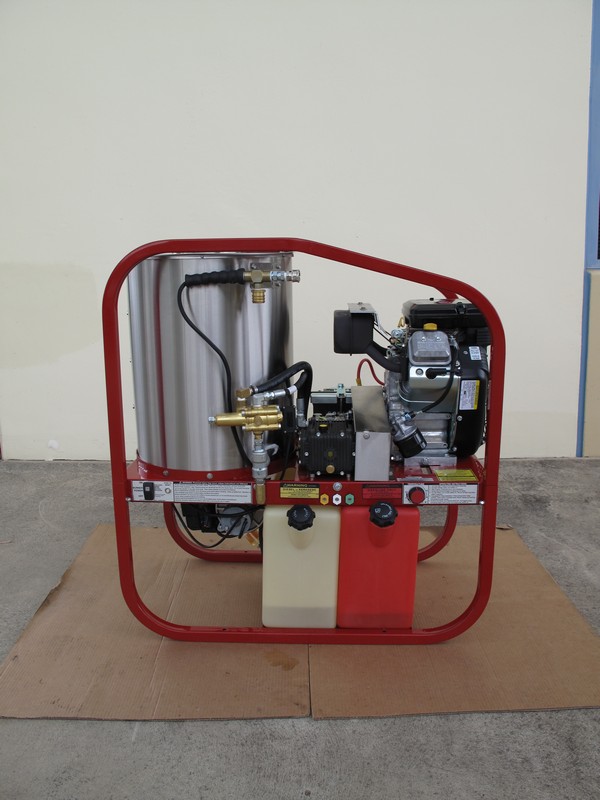

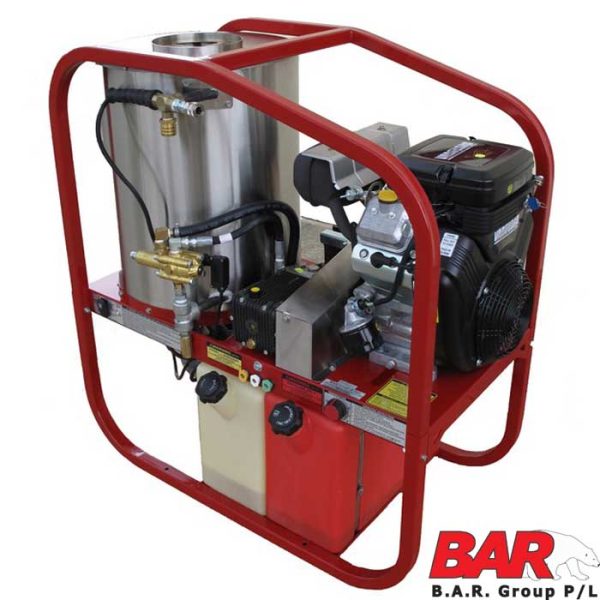

The Hot Pressure Cleaner is a BAR SK Series hot water machine delivering 3000 PSI at 18 litres per minute. A Briggs and Stratton Vanguard 14HP engine drives an AR Italian pump on a belt drive at 1400 RPM, and the machine is built on a rugged cage frame. It is manufactured in the USA and is designed to be trailer or truck mounted.

The SK Series is a versatile machine: the cage frame with a balanced lifting point makes it straightforward to mount and move, and the large 8 gallon fuel tanks give long run times. It carries the standard commercial hot water features, including an adjustable thermostat, a high capacity schedule 80 steel coil and a remote mounted unloader.

Key Features

• Briggs and Stratton Vanguard 14HP engine with electric start

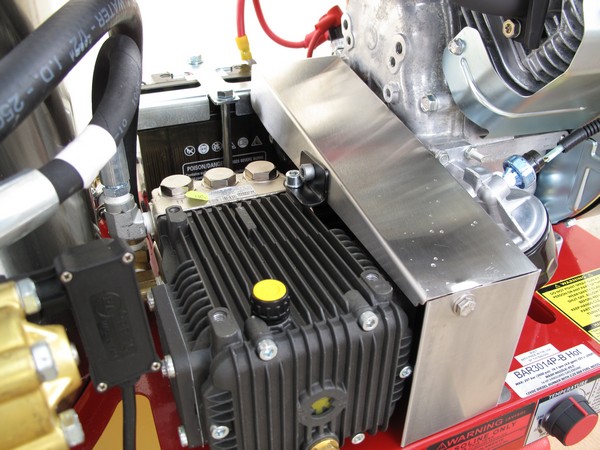

• AR Italian pump, belt drive at 1400 RPM
• 3000 PSI at 18 litres per minute
• Adjustable thermostat up to 250F
• High capacity 1/2 inch schedule 80 steel coil
• Stainless steel insulated coil wrap
• Large 8 gallon gas and diesel tanks for long run times
• Remote mounted unloader and external bypass loop

Specifications

• Performance: 3000 PSI at 18 L/min
• Maximum temperature: 85C
• Engine: Briggs and Stratton Vanguard 14HP electric start
• Pump: AR Italian pump, belt drive 1400 RPM
• Unloader: external, remote mounted
• Frame: cage frame, dimensions 43L x 27W x 45H inches, weight 198 kg
• Battery: requires Group 24 550 CCA battery, not included
• Compliance: 50 state CARB compliant
• Includes: 50 ft high pressure hose, gun and wand assembly, QC spray nozzles

Applications

• Truck and trailer mounted cleaning on site
• Heavy plant and machinery degreasing
• Industrial equipment washdown
• Contract cleaning with a mobile unit
• Fleet and workshop maintenance

What You Need to Complete the Job

Mount the machine with a 92 metre hose reel and fit an in line pressure gauge kit to monitor line pressure. Service the engine with Penrite SAE 30 small engine oil, and see the Pressure Washers Accessories range for the rest of the kit.

Frequently Asked Questions

What is the SK Series built for?

The listing describes the SK Series as a truly versatile machine that can be trailer or truck mounted to work where it is needed. The cage frame, balanced lifting point and remote mounted unloader are all built for a machine that moves between sites.

Is the battery included?

No. The listing states the machine requires a Group 24 550 CCA battery, which is not included. Fit that battery for the electric start before first use.

What fuel does it run on?

The engine runs on petrol and the burner runs on diesel, with large 8 gallon tanks for both on belt drive models. The listing states long run times without refueling, with the separate gas and diesel tanks keeping engine and burner fuel apart.
