About the EERA Ag Panel Notcher

The EERA Ag Panel Notcher is a trim cutter for Ag Panel and the related rib panels sold under other names: rib panel, 5 rib panel, Classic panel, Tuff Rib, Sturdi Panel, Grand Rib and G-Rib. These are profiles more common in the United States than in Australia. EERA states that each tool is handmade in Warrnambool, Victoria.

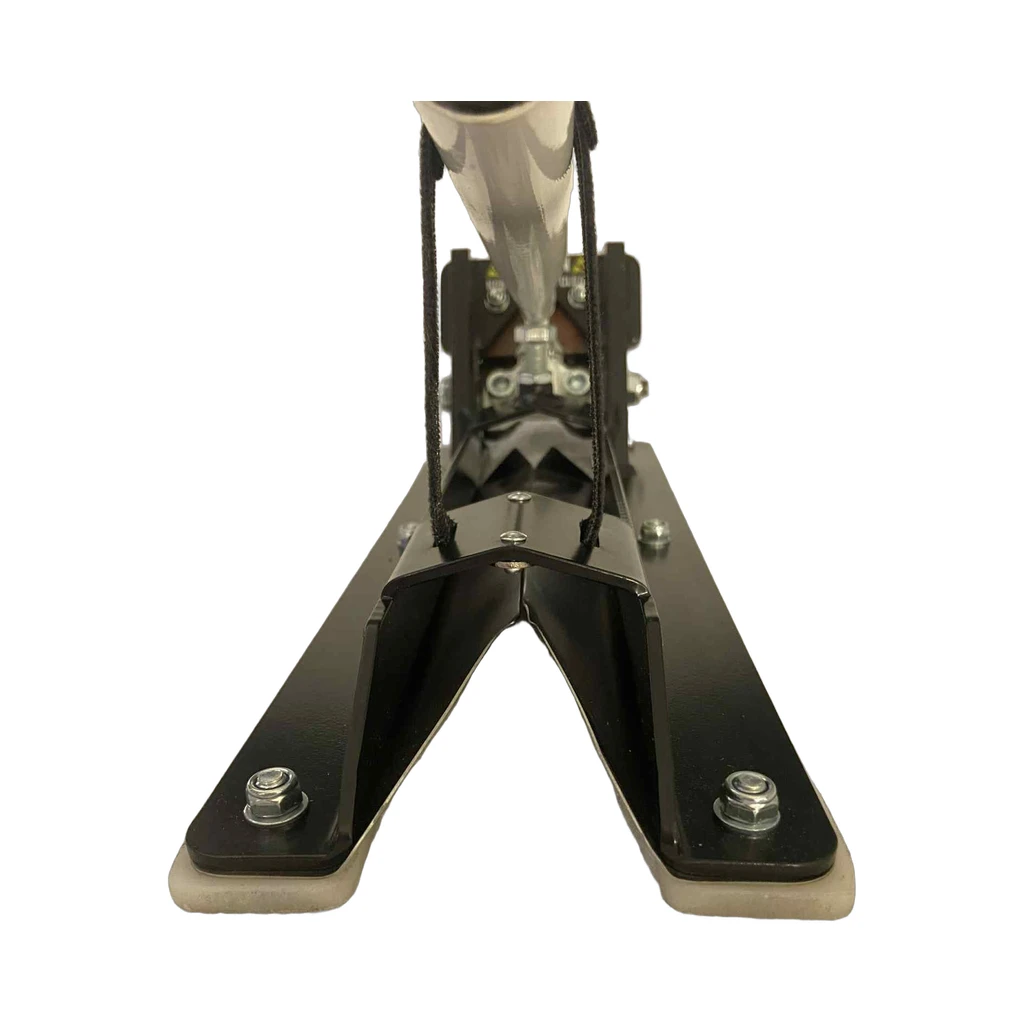

The tool, also known as a trim puncher, cuts the rib shaped notches in a trim so it sits down over each 17mm rib. The head is shaped to the profile and locates itself, so the notches land in place without measuring or marking. It is a compact tool next to the rest of the EERA range, at 420mm long.

Key Features

• Suits Ag Panel, rib panel, 5 rib panel, Classic panel, Tuff Rib, Sturdi Panel, Grand Rib and G-Rib

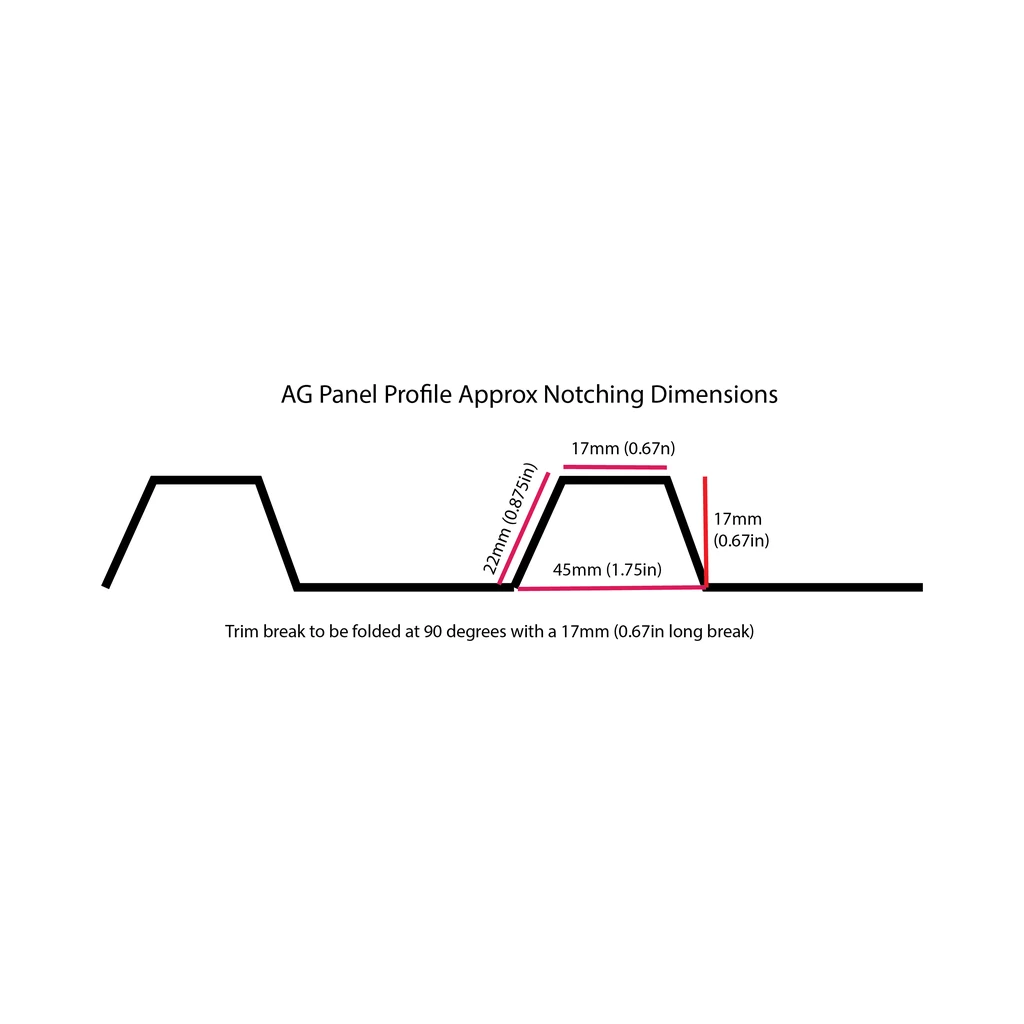

• Cuts a 17mm high notch, 45mm at the base and 17mm at the top
• Rib hugging head self locates, so there is no measuring or marking
• Manual lever operation

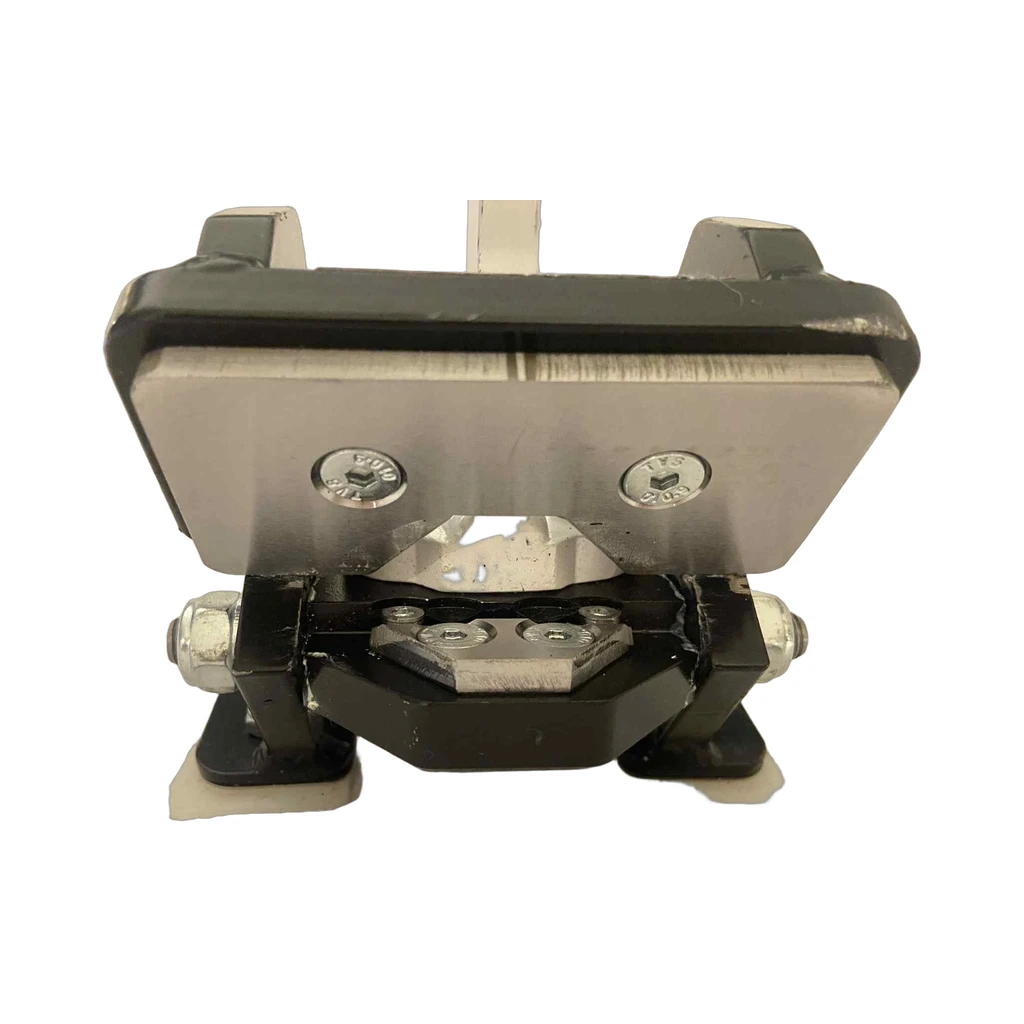

• High strength hardened steel blades, replaceable and sharpenable
• Powder coated handle
• Handmade in Warrnambool, Victoria

Specifications

• Compatible profiles: Ag Panel (rib panel, 5 rib panel, Classic panel, Tuff Rib, Sturdi Panel, Grand Rib, G-Rib)
• Rib height: 17mm
• Notch height: 17mm
• Notch width: 45mm at the base, 17mm at the top
• Cutting capacity: galvanised steel up to 1mm, prepainted steel up to 1mm
• Cutting tolerance: plus or minus 0.5mm
• Operation: manual lever
• Blades: high strength hardened steel, replaceable and sharpenable
• Tool size (L x W x H): 420 x 130 x 130mm
• Net weight: 6kg
• Product code: ATN-59 (stamped on the tool’s label plate)

Folding and Availability

EERA recommends folding the flashing or trim to 90 degrees on a sheet metal folder, 17mm long, to match the rib. Fold the full length first, then notch rib by rib.

Ag Panel is mainly a US profile, so please contact us on (03) 9394 1400 or orders@singhroofingsupplies.com.au for current availability before you order.

What You Need to Complete the Job

If you also work on Quad Rib or 4 rib panel, EERA makes a matching compact tool, the Quad Rib panel notcher. Trims can be folded to order through our custom flashing range, and the rest of the EERA tools are in Metal Roofing Tools.

Frequently Asked Questions

Does it suit Tuff Rib and G-Rib panels?

Yes. EERA lists Ag Panel together with rib panel, 5 rib panel, Classic panel, Tuff Rib, Sturdi Panel, Grand Rib and G-Rib. EERA groups all of these panel names under Ag Panel. If your panel’s rib is 17mm high, 45mm at the base and 17mm at the top, this tool suits it.

Can one notcher do Ag Panel and Quad Rib?

No. EERA’s position is one tool for one profile. The Quad Rib notch is 30mm at the base and 10mm at the top, against 45mm and 17mm here, even though both are 17mm high. If you work on both panels, you need both tools.

How do I know it is the Ag Panel tool?

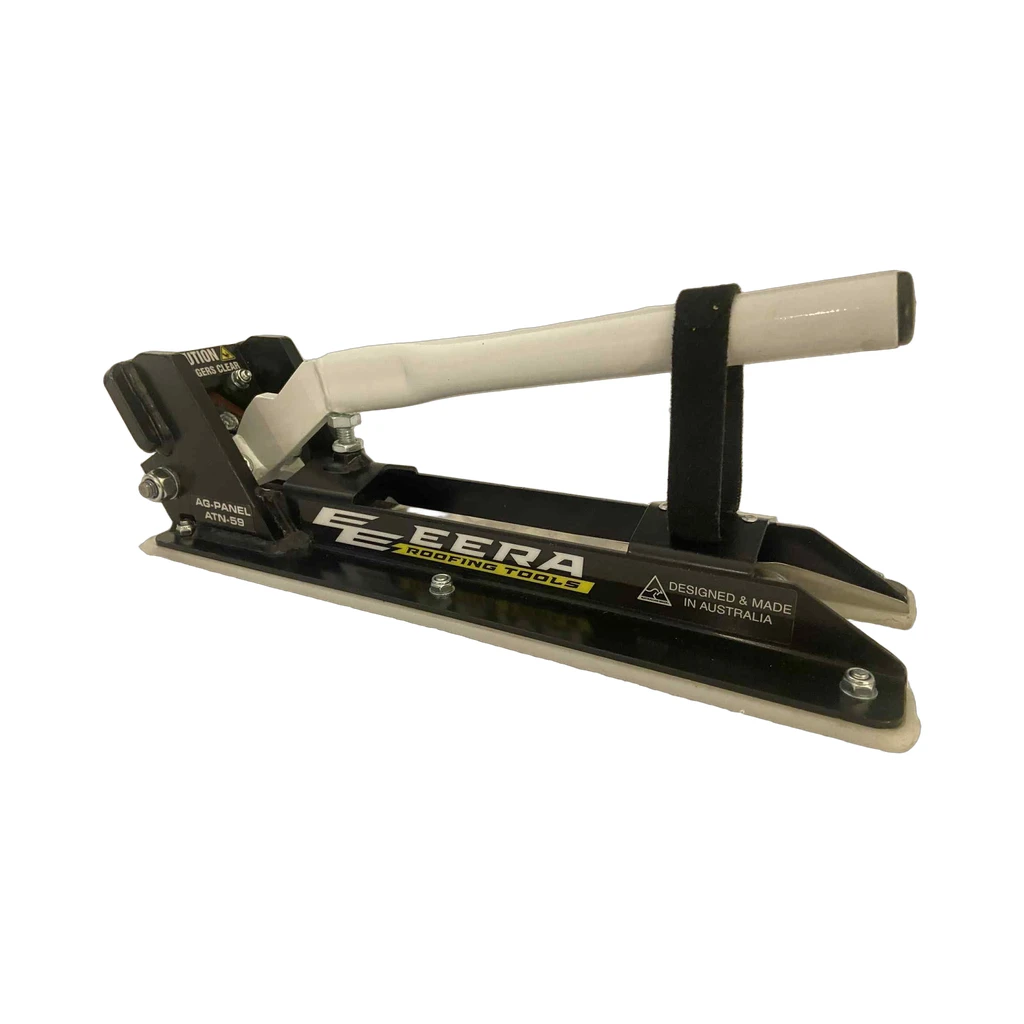

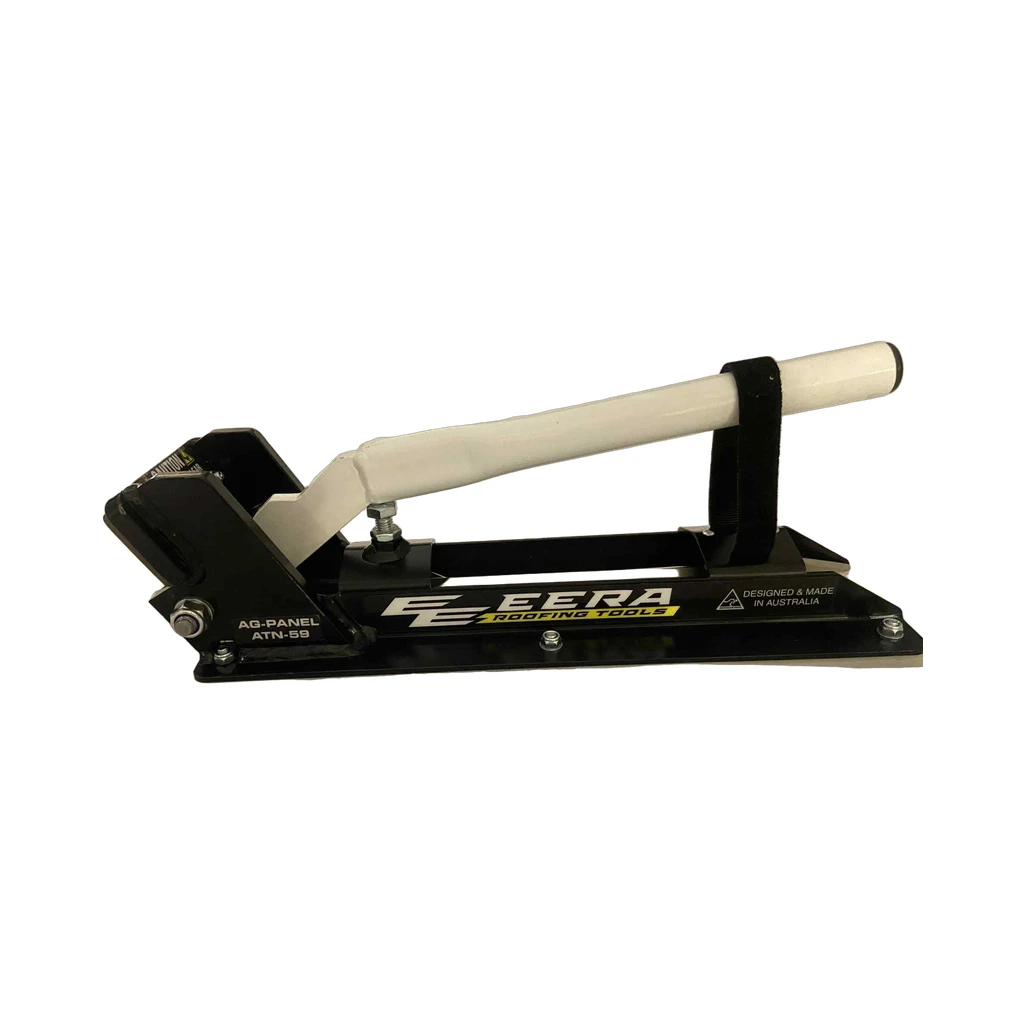

The tool carries a label plate stamped AG-PANEL ATN-59, and ATN-59 is also the product code on this listing. It is a useful check when you order replacement blades later, since blades are cut to suit one specific notcher. Ag Panel blades are by enquiry, so quote ATN-59 when you call us.

Can I check availability before ordering?

Yes, and we recommend it. Call us on (03) 9394 1400 or email orders@singhroofingsupplies.com.au before you order and we will confirm current availability with EERA. Have your panel’s rib measurements handy so we can check the tool is the right match.
