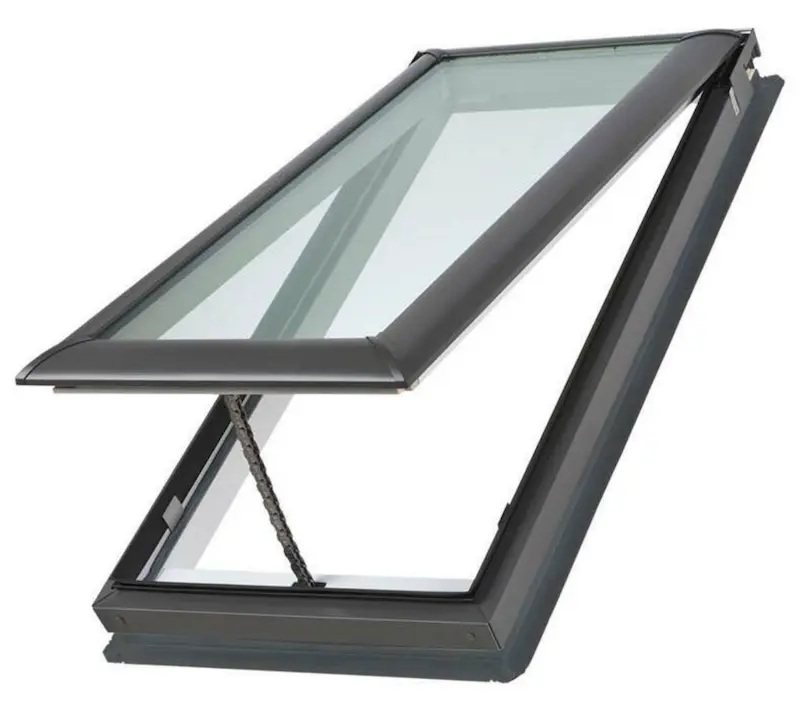

VELUX VS C04 Manual Opening Skylight 550x980mm for Pitched Roofs

The VELUX VS C04 is a manually operated pitched roof skylight built for tiled and corrugated roofing. At 550 x 980mm it is a mid-size ventilating skylight that brings generous daylight and fresh airflow to bedrooms, studies and smaller living spaces. The handle action opens the sash smoothly, so you can vent heat and stale air and close it again with the same easy motion.

Key Features

• White painted interior wood frame and sash for a timeless finish
• Grey aluminium external cappings for long-lasting weather protection
• High-performance double glazing with NEAT self-cleaning coating
• Pre-installed insect screen keeps pests out during summer ventilation
• Approximately 75% heat block for year-round comfort
• Manual handle opening for simple, reliable ventilation
• Laminated inner glass for safety, meeting Australian Standards
• Suits pitched roofs with the correct flashing (sold separately)

Specifications

• Model: VELUX VS C04 manual opening skylight
• Size: 550 x 980mm
• Type: manual opening, ventilating
• Frame: white painted interior wood frame and sash
• Exterior: grey aluminium cappings
• Glazing: high-performance double glazing with NEAT self-cleaning coating
• Ventilation: manual handle, pre-installed insect screen
• Heat block: approximately 75%
• Roof type: pitched tiled or corrugated roofing

Applications

• Bedrooms, studies and smaller living spaces that need airflow
• Rooms where warm air collects near the ceiling in summer
• Home offices that benefit from fresh air while working
• Spaces that want both daylight and controllable ventilation

What You Need To Complete The Installation

A manually opening skylight needs the right flashing to stay weathertight. Add the matching VELUX custom flashing for the VS C04 for your roof profile, and pair the skylight with VELUX blinds for the VS range to control light and heat from below. Browse the full VELUX manual opening skylight range or the wider Velux Skylights range.

Frequently Asked Questions

How does the manual opening work?

The sash opens and closes with a smooth handle action, so you can control the airflow without any electrics. For an installation beyond arm’s reach, the VELUX ZCT 300 control rod operates the skylight from floor level. Confirm with the supplier whether the control rod is required for your ceiling height.

Can I add blinds to this skylight?

Yes. The VS range is compatible with VELUX blinds, which fit inside the frame and control light and heat from below. They can be ordered alongside the skylight so the whole unit is ready to install together.

Does the skylight come with an insect screen?

Yes. A pre-installed insect screen is included, so when the sash is open for summer ventilation, mosquitoes and flies stay out. It is a standard part of the manual opening unit.

Does it need a flashing kit?

Yes. A flashing kit is required to make the skylight weathertight against the roof, and it is sold separately. The right kit depends on the skylight model and whether your roof is tiled, corrugated metal, TrimDeck or Kliplok.
