Round Downpipe Clips

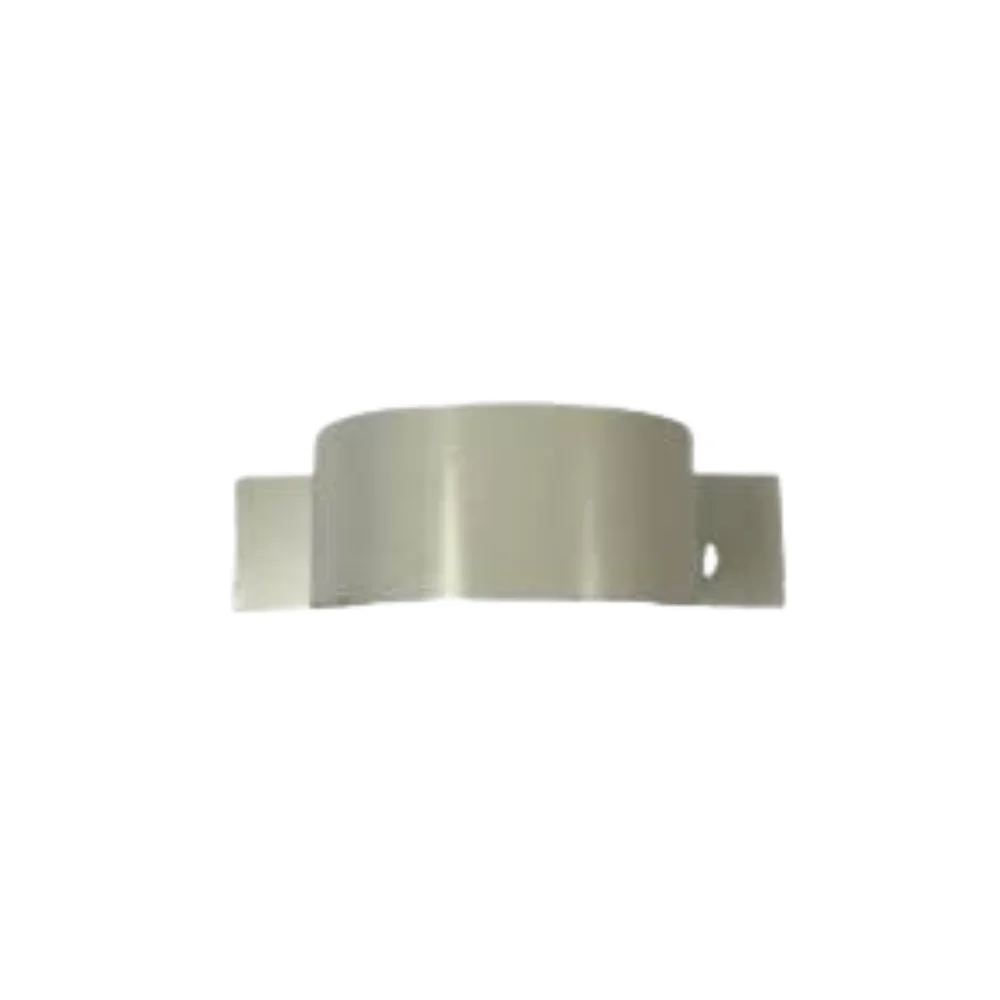

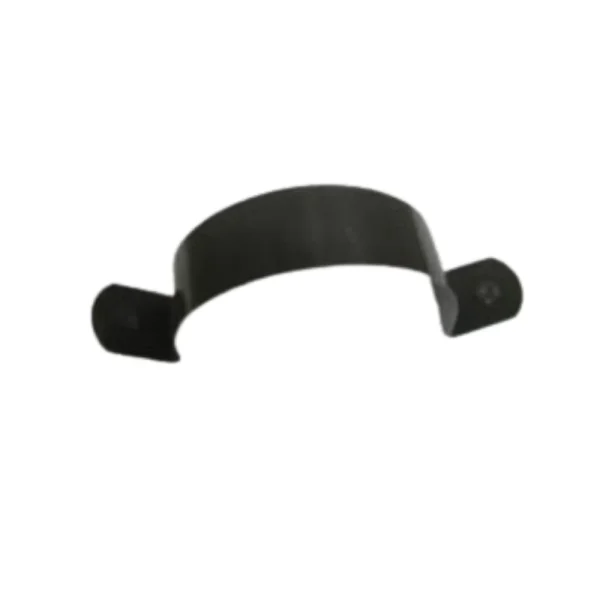

Round downpipe clips fix a round downpipe to the wall, post or masonry and keep the run straight. Each clip is profile-matched to the outside diameter of the pipe, so it holds the downpipe without pinching or distorting the thin-wall steel. They are pressed from high-tensile, corrosion-resistant steel and finished in the full Colorbond palette or in galvanised zinc.

Key Features

• Precision fit for 75mm, 90mm and 100mm round downpipes
• Pre-punched fixing hole for quick, accurate installation
• Heavy-duty 0.55mm steel resists bending and vibration
• Rounded edges protect painted pipe surfaces from abrasion
• Galvanised for rural builds, Colorbond for colour-matched facades
• Sold individually or in trade packs of 100

Specifications

• Fits: 75mm, 90mm, 100mm round downpipes
• Material: high-tensile steel, 0.55mm
• Fixing: single screw or masonry anchor through the centre boss
• Finish: galvanised or Colorbond
• Spacing: 1.8m to 2.0m centres depending on size

Installation

Plumb the downpipe and mark the clip positions to suit the recommended spacing. Pre-drill the substrate if you are fixing into hardwood or masonry, fit the clip around the pipe, align the fixing hole and drive a 10g screw or 6mm masonry anchor until the saddle seats snugly. Avoid overtightening, which can pinch the pipe. In coastal areas, seal the fastener heads with matching touch-up paint.

Applications

• New roofs, re-roofing and repairs on homes
• Multi-unit developments and light commercial buildings
• Sheds, schools and similar exposed downpipe runs
• Replacing worn or missing clips on an existing run

What You Need To Complete The Job

Pair these clips with the round downpipe they hold, then add the pop clips, offsets and shoes you need from the downpipe accessories range. Browse the full round downpipe range to match the pipe to your gutter outlet.

Frequently Asked Questions

What sizes do these clips fit?

These clips fit standard Australian round downpipes in 75mm, 90mm and 100mm. Choose the size that matches the outside diameter of your downpipe so the clip sits snugly around the pipe and holds it firmly.

How far apart should the clips be spaced?

Spacing is based on AS/NZS 3500 guidelines. The typical spacing is around 1.8m for the 75mm clip and 2.0m for the 90mm and 100mm clips. Very tall runs or sites in cyclonic areas may need closer centres, so check the recommendation for your downpipe size and height.

What finish options are available?

The clips are available in galvanised zinc, which suits rural and unpainted work, and in the full Colorbond palette so they match the downpipe and the rest of the rainwater system. Colour availability can vary by batch, so let us know what you need and we will confirm it before dispatch.

How do I fix the clip to the wall?

Each clip has a pre-punched centre boss. Drive a 10g screw through it into timber, or use a 6mm masonry anchor into brick, block or concrete. Fit the clip around the pipe, align the hole and seat the saddle snugly without overtightening.

Can I order for delivery or pickup?

Yes. You can order online and choose Australia-wide delivery or pickup from our Truganina trade counter in Melbourne’s west. Delivery windows depend on your postcode, and we send a confirmation once your order is ready. For any questions call (03) 93941400 or email orders@singhroofingsupplies.com.au.
