Overview

The Hot Pressure Cleaner is a BAR HDB Series compact mini skid rated at 3500 PSI and 15 litres per minute. A Honda GX390 13HP engine drives an Interpump PW3504 plunger pump on a belt drive at 1400 RPM, and the machine sits on a powder coated steel square tube skid frame. It is manufactured in the USA.

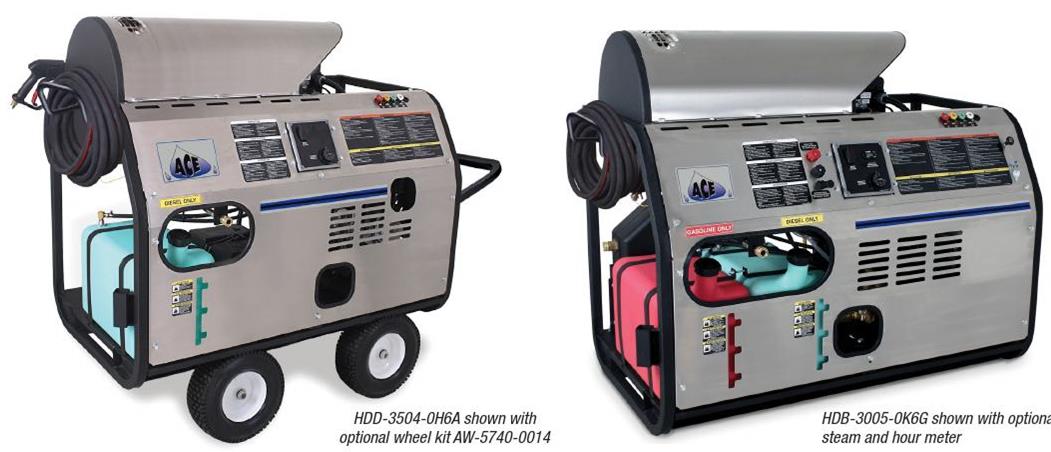

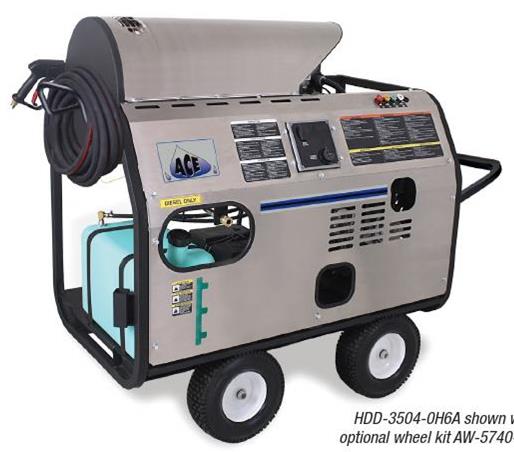

The mini skid layout is the point of this machine: it installs easily in tight spaces, on a truck, trailer or a fixed pad, without the footprint of a wheeled cart. The stainless steel removable front panel keeps the coil and burner protected, and an optional wheel kit with locking tire brake is available if the machine needs to move around a site.

Key Features

• Honda GX390 13HP engine with electric start
• Interpump PW3504 plunger pump, belt drive at 1400 RPM
• 3500 PSI at 15 litres per minute
• Compact mini skid for tight spaces
• Powder coated steel square tube skid frame
• Stainless steel removable front panel
• 12V Beckett burner, no generator needed
• Adjustable thermostat with 66C temperature rise above ambient

Specifications

• Performance: 3500 PSI at 15 L/min
• Maximum temperature: 85C
• Engine: Honda GX390 13HP electric start, battery not included
• Pump: Interpump PW3504 plunger pump, belt drive 1400 RPM
• Unloader: external
• Frame: stationary frame, weight 566 lbs
• Burner: 12V Beckett, No.1 or No.2 fuel oil, diesel or kerosene
• Includes: quick connect nozzles 0/15/25/40 degrees, 50 ft x 3/8 high pressure hose, adjustable pressure insulated dual lance, insulated trigger gun with safety lock off

Applications

• Truck and trailer mounted cleaning
• Tight spaces where a wheeled machine does not fit
• Industrial plant and equipment degreasing
• Construction site washdown
• Fixed position workshop cleaning

What You Need to Complete the Job

Fit a 92 metre hose reel near the skid for organised delivery and carry single wire high pressure hose for replacement lengths. Service the engine with Penrite SAE 30 small engine oil, and see the Pressure Washers Accessories range for the rest of the kit.

Frequently Asked Questions

What is a mini skid?

A mini skid is a compact frame that holds the engine, pump and hot water boiler in a small footprint, without the wheels of a cart machine. The HDB Series installs easily in tight spaces, on a truck, trailer or fixed pad, and an optional wheel kit is available if it needs to move around.

Does the burner need a generator?

No. The 12V Beckett burner runs from the machine battery, so there is no separate generator needed for the hot water system. The listing notes a battery is not included with the machine.

What fuel does the burner use?

The listing states the burner fires No.1 or No.2 fuel oil, diesel or kerosene, and is not approved for bio fuel. Use one of those fuels as stated to keep the burner within its rating.
