Overview

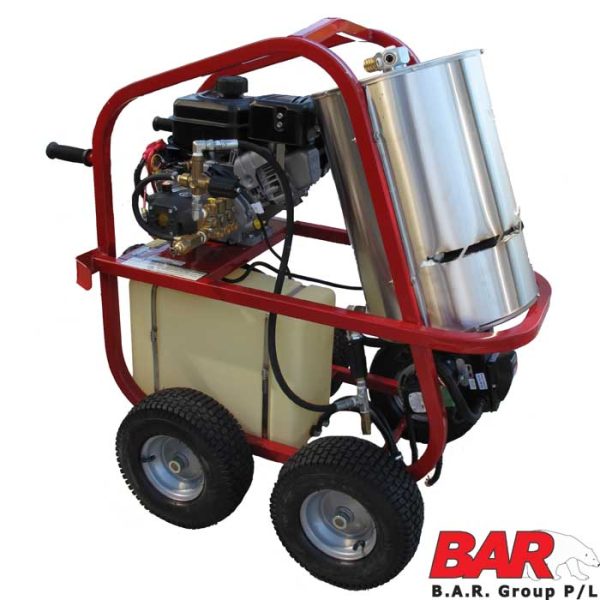

The Hot Pressure Cleaner is a BAR SH Series portable hot water machine rated at 2700 PSI and 9.5 litres per minute. A Briggs and Stratton 6.5HP engine with electric start drives an AR Italian pump in a direct drive layout at 3400 RPM, with an external unloader valve. The machine is built on a compact 4 wheel cart and is manufactured in the USA.

The SH Series is designed for portability: a rugged powder coated steel frame with a balanced lifting point, integrated handles and four large tires make it easy to move around a site. The compact design suits work where electric power is not available, and the large 8 gallon diesel tank keeps the burner running for long periods.

Key Features

• Briggs and Stratton 6.5HP engine with electric start
• AR Italian pump, direct drive at 3400 RPM
• 2700 PSI at 9.5 litres per minute
• Maximum temperature 85C, adjustable thermostat to 250F
• Stainless steel insulated coil enclosure
• Integrated gun and wand holder, hose storage hooks
• Large 8 gallon diesel tank
• Pressure relief valve and safety burst disk

Specifications

• Performance: 2700 PSI at 9.5 L/min
• Maximum temperature: 85C
• Engine: Briggs and Stratton 6.5HP electric start
• Pump: AR Italian pump, direct drive, 3400 RPM, external unloader
• Frame: 4 wheel cart, dimensions 44L x 28W x 45H inches
• Battery: requires Group 24 550 CCA battery, not included
• Country: manufactured in USA
• Includes: 50 ft high pressure hose, gun and wand assembly, QC spray nozzles

Applications

• Portable hot water cleaning where power is not available
• Trucks, trailers and equipment washdown
• Building and concrete cleaning
• Workshop and hire fleet maintenance
• Farm and agricultural equipment cleaning

What You Need to Complete the Job

Keep the delivery hose on a 46 metre hose reel and stock single wire high pressure hose for replacement lengths. Service the engine with Penrite SAE 30 small engine oil, and see the Pressure Washers Accessories range for the rest of the kit.

Frequently Asked Questions

Is this machine easy to move around?

Yes. The SH Series has a rugged powder coated steel frame with a balanced lifting point, integrated handles and four large tires, so it is built to be portable. It is the compact option in the range for sites where a big cart machine is too much.

Does the burner need mains power?

No. The diesel burner runs from the machine, so the unit works where electric power is not available. The listing notes the machine requires a Group 24 550 CCA battery for the electric start, and that battery is not included.

What temperature does the hot water reach?

The listing states a maximum temperature of 85C, with an adjustable thermostat up to 250F. The stainless steel insulated coil enclosure protects the operator from the hot coil while the machine is running.
