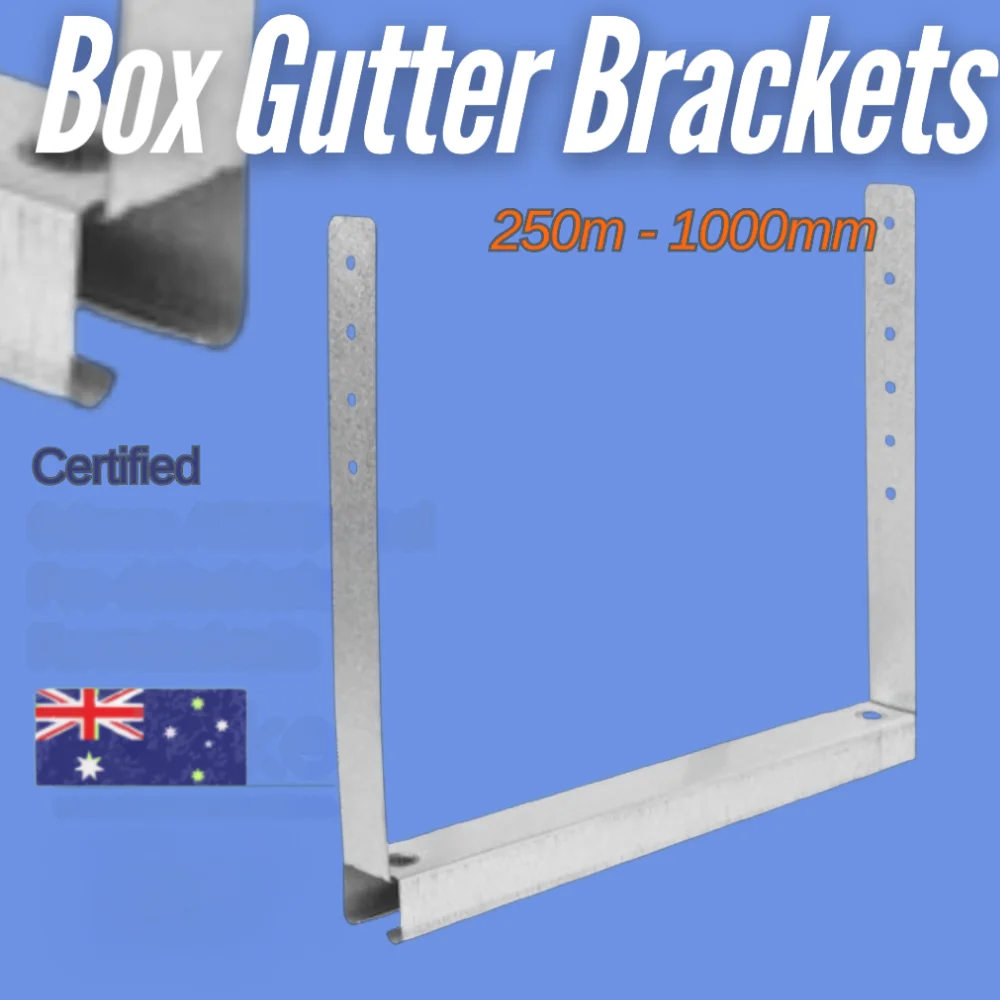

Box Gutter Brackets

Box gutter brackets support a box gutter along its run and hold it at the right slope so stormwater drains cleanly to the outlet. They are known by a few names on site, including saddle and straps, strap brackets, jonda brackets and boxy brackets, and they are one of the most popular ways to fix a box gutter to the building structure. This range comes in three sizes from 250mm to 1000mm, so there is a bracket for narrow internal gutters and for full-width runs.

Key Features

• 3 sizes from 250mm to 1000mm to suit different box gutter widths
• Rivets drawn from the material, no separate rivet parts to lose
• Rounded rails for extra strength along the bracket
• Pre-drilled holes for quick fixing
• Easy slide in and out for positioning before final fix
• Lacquered edges add rust protection

Specifications

• Product: box gutter brackets
• Sizes: 250mm to 1000mm
• Construction: material-drawn rivets, rounded rails
• Finish: lacquered edges for rust protection
• Certification: AS1170.0, AS1170.1, AS1170.2, AS2179.1, AS3500.3, AS4600

Installation

Slide the bracket into position under the box gutter, set the height so the gutter runs at the required fall, and fix through the pre-drilled holes. The brackets go in before the gutter is connected to the downpipe, and the easy slide adjustment lets you set the alignment first and fix once the run is correct. Space the brackets along the gutter to keep the slope consistent over the full length.

Applications

• Box gutter support on new and re-roofed buildings
• Setting and maintaining the drainage slope of a box gutter
• Commercial and residential roofs with internal gutters
• Replacing damaged or corroded gutter brackets

What You Need To Complete The Job

Pair the brackets with gutter protection to keep the box gutter clear of leaf build-up, and use the ridge cover to finish the roof apex. Browse the Roofing Accessories range for the full kit.

Frequently Asked Questions

What are box gutter brackets used for?

They support box gutters to the building structure and hold the gutter at the correct slope for drainage. Without them the gutter sags and water pools instead of flowing to the outlet.

What sizes do they come in?

They come in three sizes from 250mm to 1000mm, which covers narrow internal gutters through to full-width box gutters. Match the bracket to the width of your gutter.

Why are the rivets drawn from the material?

The rivets are punched from the bracket material itself, so there are no separate rivets to fit or lose on site. It also makes the bracket stronger at the connection points.

Are they rust resistant?

Yes. The brackets have lacquered edges for extra rust protection, and the construction is certified to the AS1170, AS2179.1, AS3500.3 and AS4600 standards for structural and rainwater goods use.
